[DIA][RIMLESS DRILL]

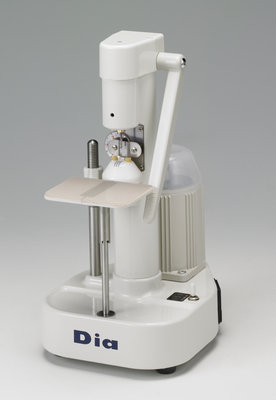

Handy Drill DM-5 (Rimless Lens Drill)

Easy to use for high quality rimless jobs!

DM-5 DM-5

Up

  • Rigid and non-runout drill spindle performs speedy and attractive drilling on all plastic materials
  • Well-thought out design of lens-supporting system secures drill point and angle on any shape lens.
  • A wide range of extra drill bits is available and exchangeable quick and simply.

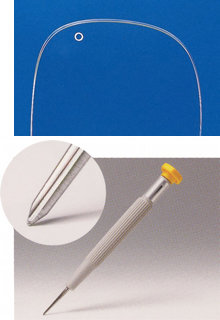

  • 1/2-hole hand reamer (a standard accessory) eases fine tuning adjustment on a hole.
Specifications
Possible diameter of toolingSpindle speed
0.8-2.6mm (3.0mm for optional end-mill)2900(50Hz) / 3500(60Hz) RPM
Power requirementsPower requirements
100-120V 60Hz AC or 200-240V 50Hz AC, 30W140(W)x185(D)x275(H)mm/4kg
Accessories
Standard drill bits, 1/2-hole hand reamer, etc.
