LS-3W LENS MARKER BLOCKER / LS-3E LENS BLOCKER

Upgraded with battery-powered LED light source!

 LS-3W  Twin-arm type for both blocking and marking lenses
 LS-3E  Single-arm type for blocking lenses

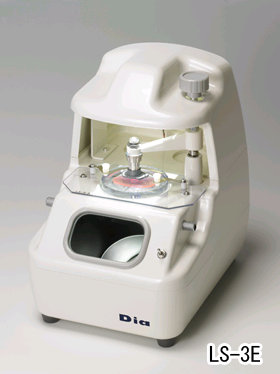

LS-3W LS-3E

• A wide range of adapters for other manufacturers' blocking systems is available from our optional accessories.

  • New-introduced LED light source provides much clearer layout screen, at the same time actualizes a super power-thrifty device with a built-in auto-shut-off timer.

  • Battery-powered cordless, compact and lightweight design permits placement anywhere.

  • Multifunctional design performs
    • centering, • adhesive blocking,
    • suction blocking and
    • marking axis-lines and center-dot (LS-3W). Blocking head and marking head can be simply replaced each other on the left and right arms as operator's option (LS-3W).

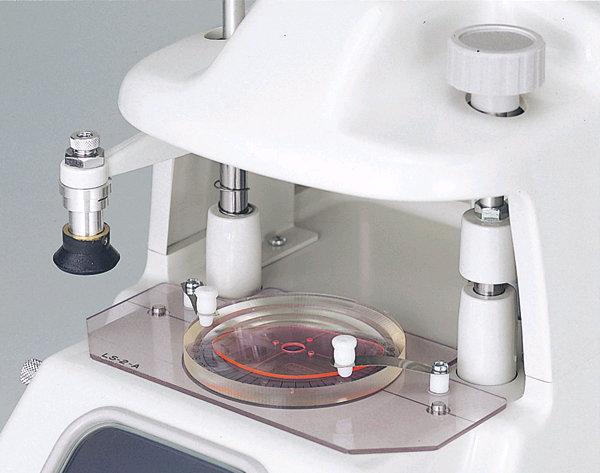

    Arm
LS-3W

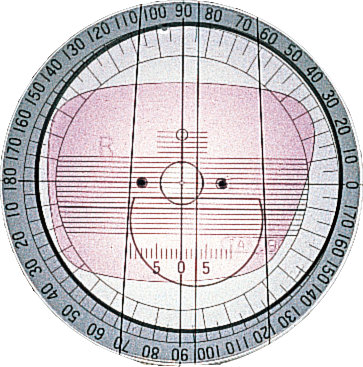

• Projects absolutely parallax-free and on-size images of lens and pattern on an easi-view screen, yet movable lead-lines position the segment simply and precisely.


Specifications
Power Requirements3V DC, 0.5W(Battery:LR14, R14 or Type C/2pcs.)
Dimensions/Weight180(W)x245(D)x250(H)mm/3.2kg(LS-3W) 2.7kg(LS-3E)
